Introducing the Hillcrest Trailers
10K CAR HAULER TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
INTRODUCING THE HILLCREST TRAILERS
10K CAR HAULER TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
3 Year Limited
WARRANTY
18'/20'/22'/24'
LENGTH
82"
WIDTH
10K
GVWR
3 Year Limited
WARRANTY
18'/20'/22'/24'
LENGTH
82"
WIDTH
10K
GVWR
Introducing the Hillcrest Trailers 10k Car Hauler Trailer, a reliable and durable option for all your hauling needs. With two premium 6000# cambered axles and quick-lubricating hubs, this trailer is built to handle heavy loads with ease. The forward self-adjusting electric brakes on both axles ensure safe and smooth stops every time.
Equipped with a multi-leaf spring suspension with equalizer, a 5” channel wrap tongue, and a 2-5/16” adjustable coupler, this trailer offers stability and security while on the road. The 7,000# top wind drop-leg jack and 1/4” Grade 70 safety chains provide added peace of mind during transport.

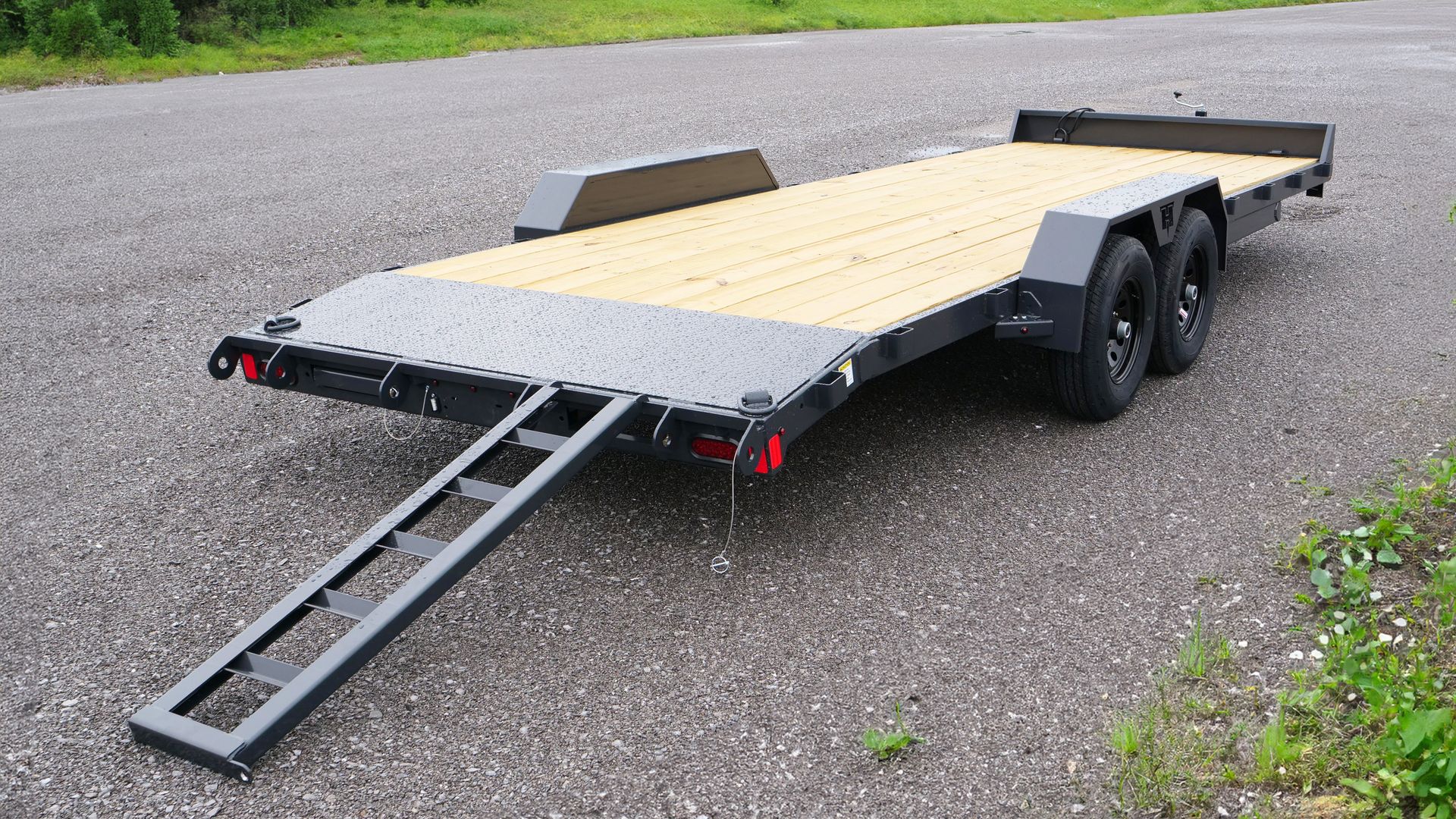

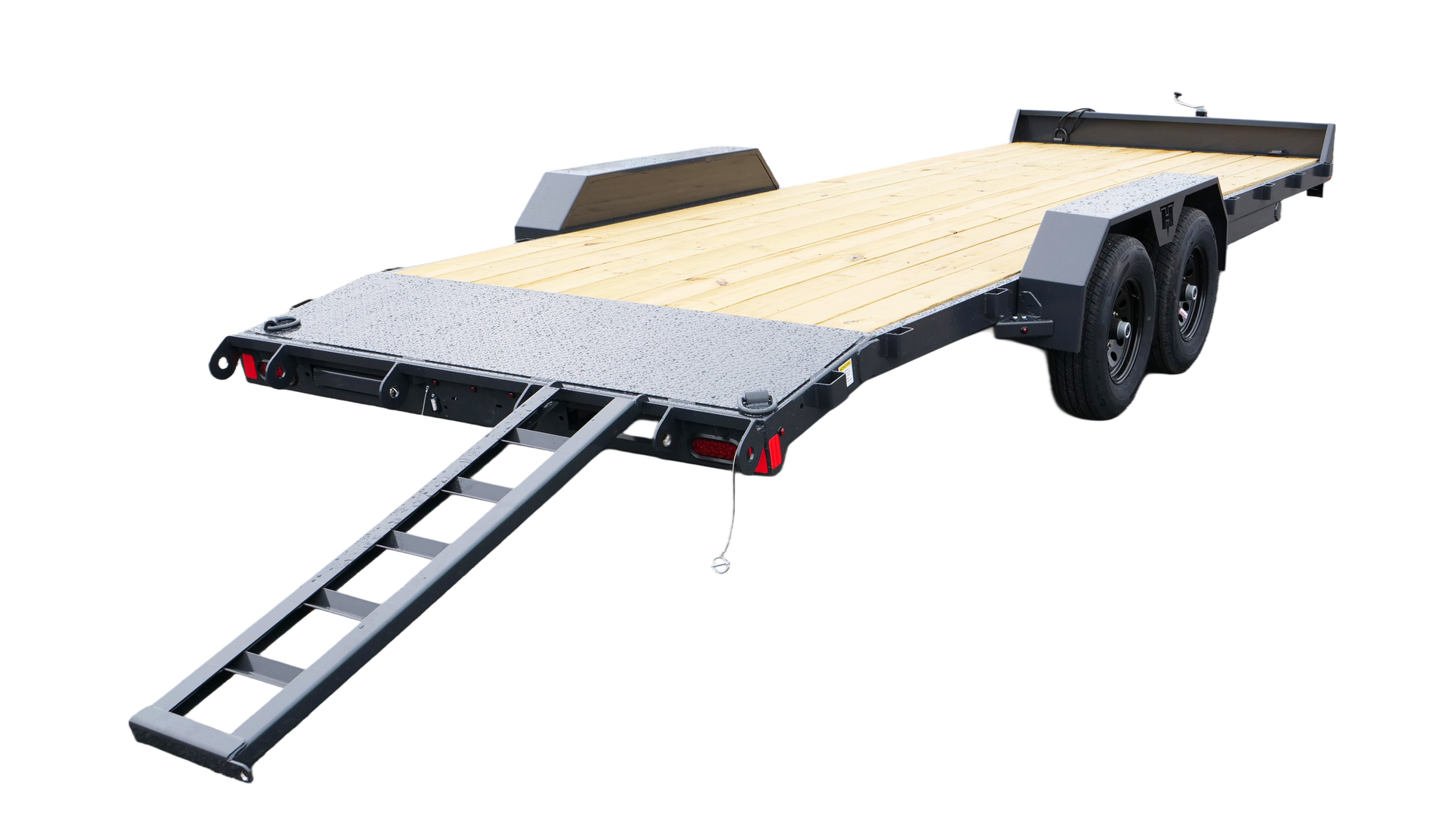

This trailer features a 5” factory channel frame, removable double broke fenders, and 5’ slide-in angle ramps for easy loading and unloading. The 2’ dovetail, stake pockets along both sides, and 4 welded D-rings offer versatility and convenience when securing your cargo.
Available in sizes ranging from 16+2 to 22+2 feet, the Hillcrest Trailers 10k Car Hauler Trailer is the perfect solution for hauling vehicles, equipment, and more.
| MODEL | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|
| 10162SC | 16' + 2' | 82" | 2,775lbs. | 7,224lbs. |
| 10182SC | 18' + 2' | 82" | 2,875lbs. | 7,124lbs. |
| 10202SC | 20' + 2' | 82" | 2,990lbs. | 7,010lbs. |
| 10222SC | 22' + 2' | 82" | 3,150lbs | 6,850lbs. |
Optional Equipment
- Stand Up Ramps
- Tool Box
- Spare Tire Mount
- Spare Tire
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles | 2 - 6000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self Adjusting Electric Brake on Both Axles |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tongue | 5" Channel Wrap Tongue |
| Coupler | 2-5/16" Adjustable Coupler |
| Safety Chains | 1/4” Grade 70 w/Safety Latch Hook (2 each) |
| Jack | 7,000# Top Wind,Drop Leg, Set-Back Jack |
| Frame | 5" Factory Channel |
| Cross-Members | 3" Factory Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor | 2" Treated Pine |
| Fenders | Removable Double Broke Fenders |
| Ramps | 5' Slide-In Angle Ramps |
| Dovetail | 2' Dovetail |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) |
| Tie-Downs | 4- 5/8" Welded D-rings |
| Trailer Plug | 7-Way RV |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Sealed Modular Wiring Harness |
| Tires | ST225/75 R-15 Load Range D |
| Bolt Pattern | 6 Bolt |
| Spare Tire | Optional |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| GVWR | 9995 |
| Sizes (ft) | 16+2, 18+2, 20+2, 22+2 |
