Introducing the Hillcrest Trailers

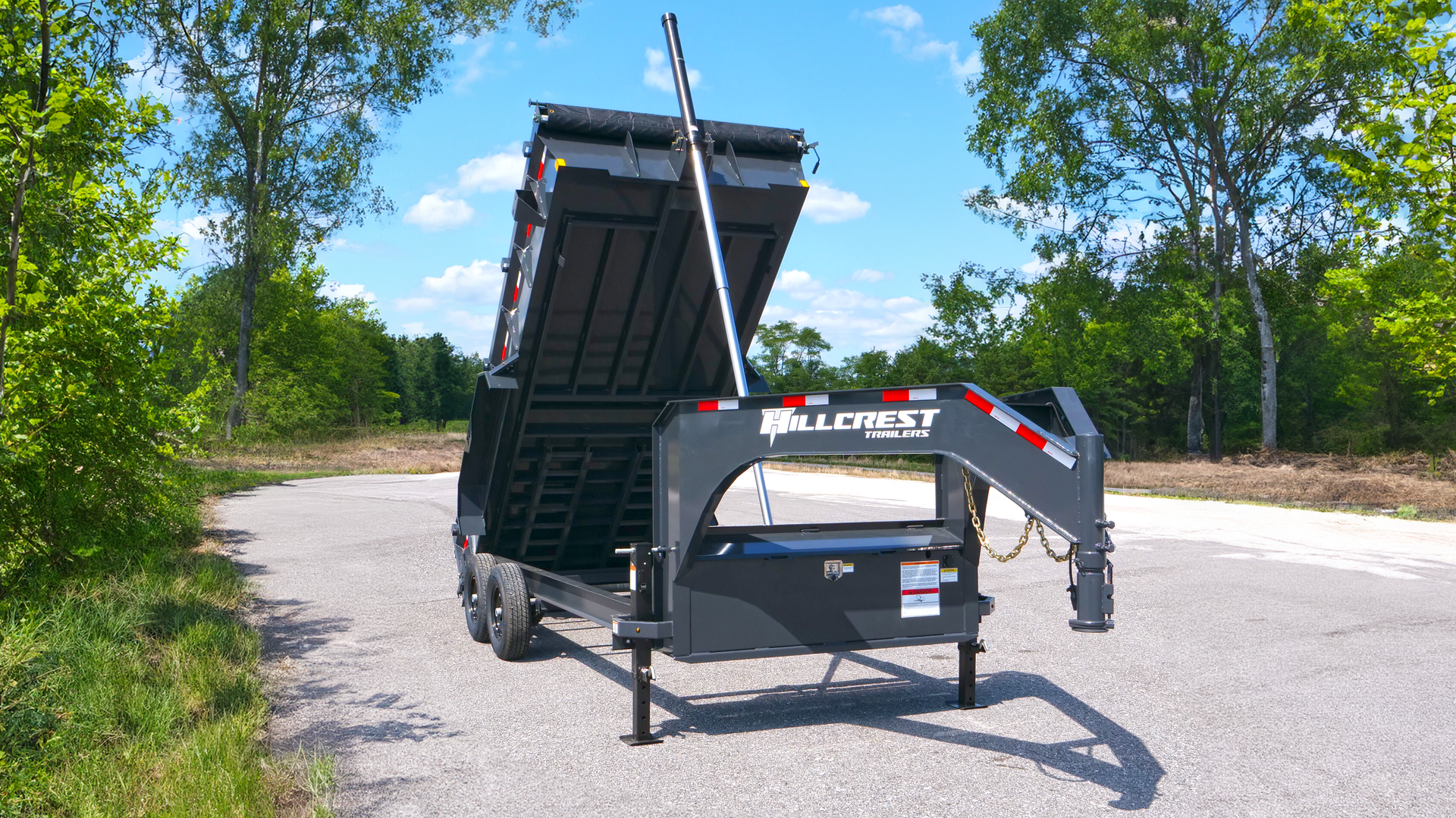

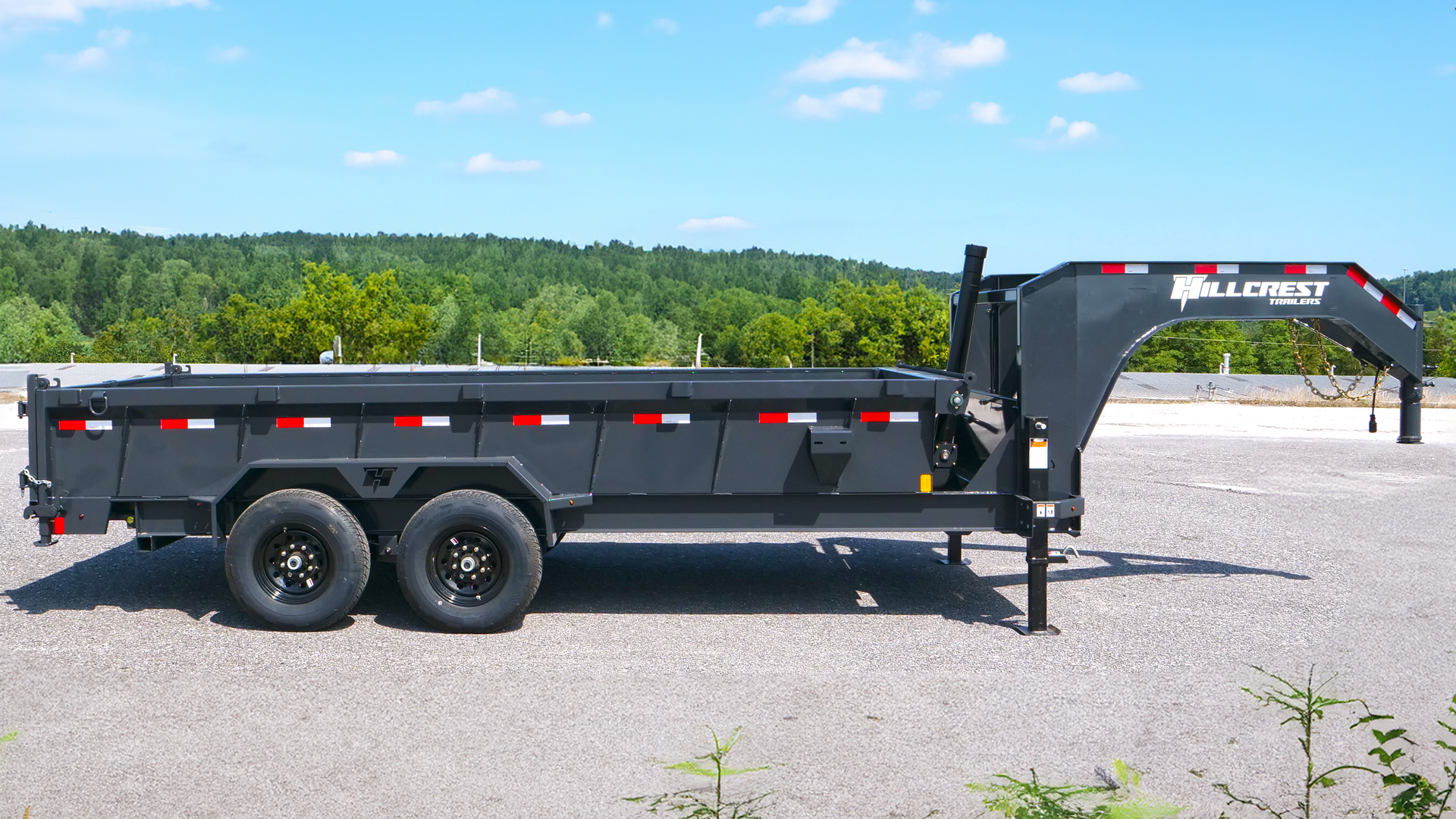

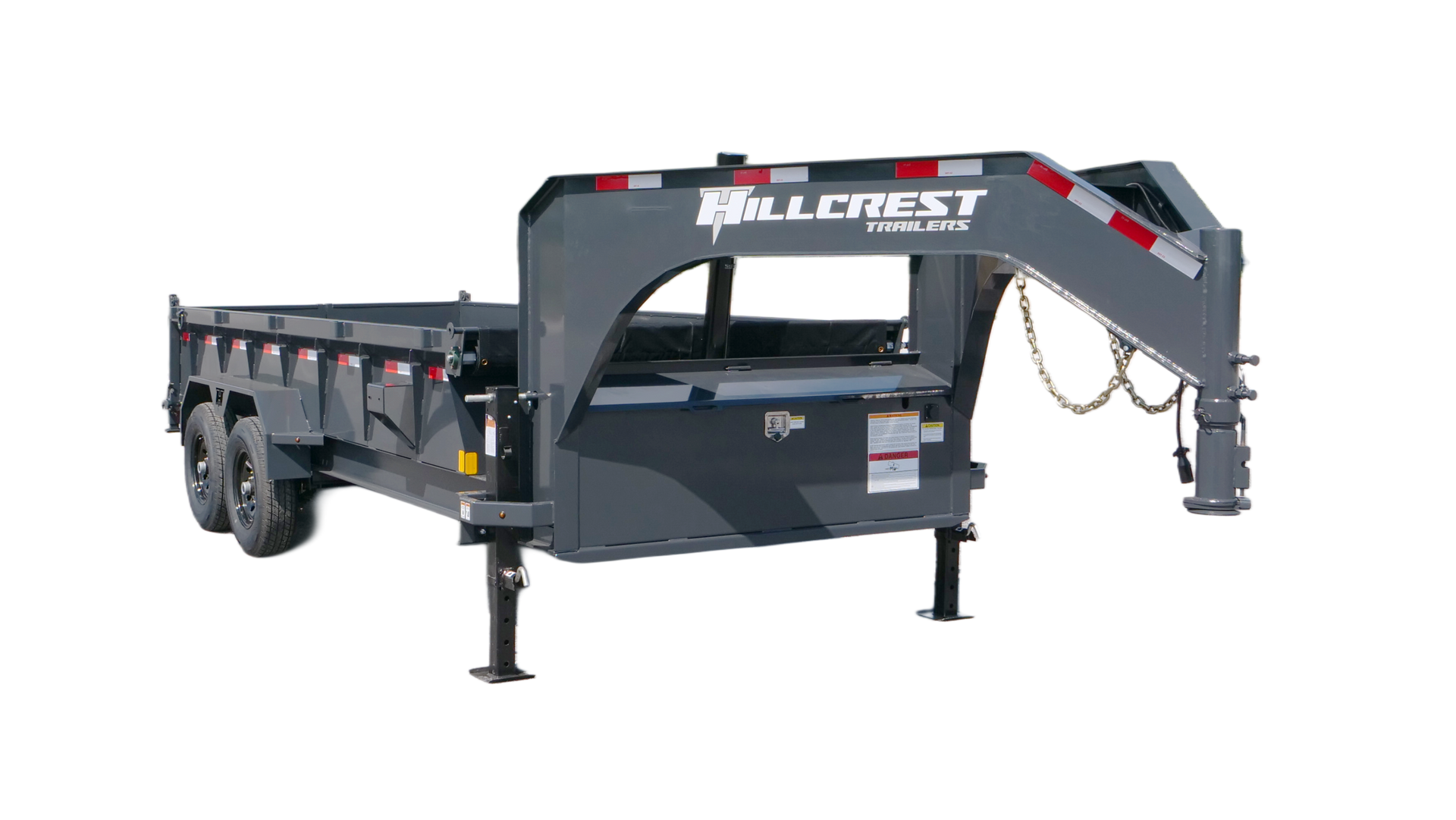

GOOSENECK DUMP TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
INTRODUCING THE HILLCREST TRAILERS
GOOSENECK DUMP TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
3 Year Limited
WARRANTY
16'
LENGTH
83"
WIDTH
15.9K or 17.6K
GVWR
3 Year Limited
WARRANTY
16'
LENGTH
83"
WIDTH
15.9K or 17.6K
GVWR
Introducing the Hillcrest Trailers Gooseneck Dump Trailer, a heavy-duty workhorse designed to tackle your toughest hauling jobs with ease. Choose from two different models, a 15.9K or 17.6K model, both equipped with premium cambered axles and quick-lubricating hubs for smooth operation. The forward self-adjusting electric brakes on both axles provide added safety and peace of mind on the road.
Constructed with a sturdy fabricated I-beam tongue and 8” I-beam frame, this trailer features 12,000# top wind drop leg jacks for easy maneuvering. The 7-gauge floor and 3” channel cross-members ensure durability and strength, while the multi-leaf slipper springs provide a smooth ride.
With stake pockets along both sides, 6.5’ standard-duty ramps (heavy-duty optional), and rear combo gates, this trailer is versatile and efficient for all your hauling needs. The LED lighting, sealed modular wiring harness, and optional spare tire mount make this trailer both safe and convenient to use.
15.9k Trailer Specs
| MODEL | AXLES | SIDES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|---|
| 159716SGD | 2 - 7000# | 24" | 16' | 83" | 5,722lbs. | 10,178lbs. |
| 159716SGDH | 2 - 7000# | 40" | 16' | 83" | 6,210lbs. | 9,690lbs. |
17.6k Trailer Specs
| MODEL | AXLES | SIDES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|---|
| 176716SGD | 2 - 8000# | 24" | 16' | 83" | 6,072lbs. | 11,528lbs. |
| 176716SGDH | 2 - 8000# | 40" | 16' | 83" | 6,562lbs. | 11,038lbs. |
Optional Equipment
- Spare Tire to Fit Included Tire Mount
- Heavy Duty Ramps (13,000 lbs.)
- Standard Duty Ramps (8,000 lbs.)
- Optional 40" Sides
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles | (15.9K) 2 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs or (17.6K) 2 - 8000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | Fabricated I-Beam |
| Coupler | 2-5/16" Adjustable Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Frame | 8" I-Beam, 13lbs. per foot |
| Cross-Members | 3" Channel on 12" Centers |
| Floor | 7 Ga |
| Fenders | Double Broke |
| Ramps | 6.5' Heavy Duty Ramps |
| Stake Pockets | Stake Pockets Along Both Sides |
| Wiring | Sealed Modular Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Spare Mount | Side Spare Tire Mount |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Tie-Downs | (6) 5/8" D-Rings Inside Bed to Secure Equipment |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides for Cargo Control |
| Power | Power Up/Gravity Down Movement |
| Ram | 12-Ton 3- Stage Telescopic Cylinder |
| Sides | 24" Tall, 40" Optional |
| Stabilizers | Rear Stabilizer Stands |
| Steps | Convenient Side-Step to Access Top Rail |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
| Top Rail | Formed Strong Rail |
Introducing the Hillcrest Trailers Gooseneck Dump Trailer, a heavy-duty workhorse designed to tackle your toughest hauling jobs with ease. Choose from two different models, a 15.9K or 17.6K model, both equipped with premium cambered axles and quick-lubricating hubs for smooth operation. The forward self-adjusting electric brakes on both axles provide added safety and peace of mind on the road.
Constructed with a sturdy fabricated I-beam tongue and 8” I-beam frame, this trailer features 12,000# top wind drop leg jacks for easy maneuvering. The 7-gauge floor and 3” channel cross-members ensure durability and strength, while the multi-leaf slipper springs provide a smooth ride.
With stake pockets along both sides, 6.5’ standard-duty ramps (heavy-duty optional), and rear combo gates, this trailer is versatile and efficient for all your hauling needs. The LED lighting, sealed modular wiring harness, and optional spare tire mount make this trailer both safe and convenient to use.
15.9k Trailer Specs
| MODEL | AXLES | SIDES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|---|
| 159716SGD | 2 - 7000# | 24" | 16' | 83" | 5,722lbs. | 10,178lbs. |
| 159716SGDH | 2 - 7000# | 40" | 16' | 83" | 6,210lbs. | 9,690lbs. |
17.6k Trailer Specs
| MODEL | AXLES | SIDES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|---|
| 176716SGD | 2 - 8000# | 24" | 16' | 83" | 6,072lbs. | 11,528lbs. |
| 176716SGDH | 2 - 8000# | 40" | 16' | 83" | 6,562lbs. | 11,038lbs. |
Optional Equipment
- Spare Tire to Fit Included Tire Mount
- Heavy Duty Ramps (13,000 lbs.)
- Standard Duty Ramps (8,000 lbs.)
- Optional 40" Sides
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles | (15.9K) 2 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs or (17.6K) 2 - 8000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 8" I-Beam, 13LB |
| Coupler | 2-5/16" Adjustable Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Frame | 8" I-Beam, 13LB |
| Cross-Members | 3" Channel on 12" Centers |
| Floor | 7 Ga |
| Fenders | Double Broke |
| Ramps | 6.5' Heavy Duty Ramps |
| Stake Pockets | Stake Pockets Along Both Sides |
| Trailer Plug | 7-Way RV |
| Wiring | Sealed Modular Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Bolt Pattern | 8-Lug |
| Tie-Downs | (6) 5/8" D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control |
| Charger | 5A 110V on Board Battery Charger |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) |
| J-Hooks | Along sides for Cargo Control |
| Power | Power Up/Gravity Down Movement |
| Ram | 12-Ton 3- Stage Telescopic Cylinder |
| Sides | 24" Tall |
| Stabilizers | Rear Stabilizer Stands |
| Steps | Convenient Side-Step for Easy Access |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed |
| Tarp | Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders |
| Top Rail | Formed Strong Rail |
