Introducing the Hillcrest Trailers
15.4K & 17.6K Bumper Pull Deckover
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
INTRODUCING THE HILLCREST TRAILERS
15.4K & 17.6K Bumper Pull Deckover
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
3 Year Limited
WARRANTY
20'- 40' Options
LENGTH
102"
WIDTH
15.4K or 17.6K
GVWR
3 Year Limited
WARRANTY
20'- 40' Options
LENGTH
102"
WIDTH
15.4K or 17.9K
GVWR
Introducing the 15.4K and 17.6K Bumper pull deckover trailer from Hillcrest Trailers!
This heavy-duty trailer is perfect for all your hauling needs. With 2 - 8,000# or 2-7,000# Cambered Axles with Quick-Lubricating Hubs, forward self-adjusting electric brakes, and a multi-leaf slipper spring suspension, you can trust this trailer to get the job done safely and efficiently.

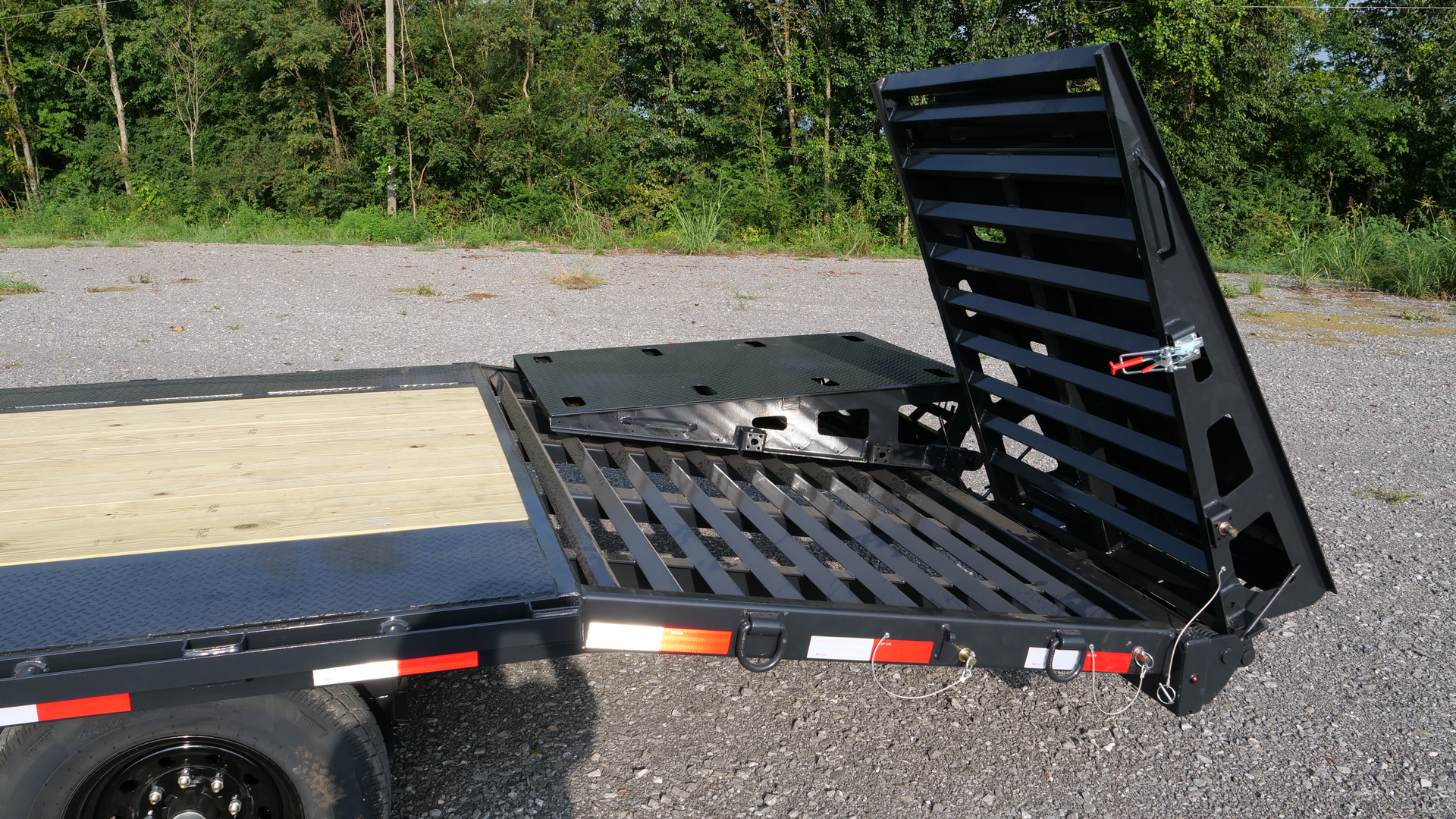

The 10” I-Beam frame and 3” channel cross-members provide superior strength and durability, while the treated pine floor and double hinged 5’ mega ramps or slide in ramps make loading and unloading a breeze.
With pipe chain spools, and retractable steps, you’ll have everything you need for a successful haul. Choose from multiple sizes in multiple dovetail configurations.
Upgrade your hauling game with the Bumper pull deckover trailer from Hillcrest Trailers today!
| MODEL | TAIL | LENGTH | WIDTH |
|---|---|---|---|
| 15416SDST | STRAIGHT | 16' | 102" |
| 15420SDST | STRAIGHT | 20' | 102" |
| 15424SDST | STRAIGHT | 24' | 102" |
| 15428SDST | STRAIGHT | 28' | 102" |
| 154165SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 16'+5' | 102" |
| 154205SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 20'+5' | 102" |
| 154245SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 24'+5' | 102" |
| MODEL | TAIL | LENGTH | WIDTH |
|---|---|---|---|
| 17616SDST | STRAIGHT | 16' | 102" |
| 17620SDST | STRAIGHT | 20' | 102" |
| 17624SDST | STRAIGHT | 24' | 102" |
| 17628SDST | STRAIGHT | 28' | 102" |
| 176165SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 16'+5' | 102" |
| 176205SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 20'+5' | 102" |
| 176245SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 24'+5' | 102" |
Optional Equipment
- Spare Tire & Mount
- Underslung Toolbox
- Hydraulic Jacks
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles (15.4K) | 2 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Axles (17.6K) | 2 - 8000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axle |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | Engineered Beam |
| Coupler | 21K Adjustable Demco Coupler, 2 5/16" Ball |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook |
| Jack | Single 12,000# Drop Leg Jack (Bolted on) w/Greasable Handle |
| Frame | 10" I-Beam, 12# |
| Cross-Members | 3" Channel |
| Floor | Treated Pine |
| Ramps | 5' Full Width Mega Ramps or 8' HD Slide In Ramps (Straight Deck) |
| Dovetail | Straight Deck (No Dovetail) or 5' Self Cleaning Dovetail |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. |
| Rub Rail | 3/8" x 2" Down Both Sides w/ 1.5" Pipe Spools 24" O.C. |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet Mounted L.E.D Lighting |
| Wiring | Sealed Modular Wiring Harness |
| Tires (17.6K) | ST235/80R16 Load Range E Duals |
| Tires (15.4K) | ST215/75R17.5 Load Range H Duals |
| Spare Mount | Mounted Behind Intergrated Toolbox |
| Spare Tire | Standard |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Storage | Integrated Tongue Toolbox |
| Steps & Handles | (2) Retractable Steps |
Introducing the 15.4K and 17.6K Bumper pull deckover trailer from Hillcrest Trailers!
This heavy-duty trailer is perfect for all your hauling needs. With 2 - 8,000# or 2-7,000# Cambered Axles with Quick-Lubricating Hubs, forward self-adjusting electric brakes, and a multi-leaf slipper spring suspension, you can trust this trailer to get the job done safely and efficiently.
The 10” I-Beam frame and 3” channel cross-members provide superior strength and durability, while the treated pine floor and double hinged 5’ mega ramps or slide in ramps make loading and unloading a breeze.
With pipe chain spools, and retractable steps, you’ll have everything you need for a successful haul. Choose from multiple sizes in multiple dovetail configurations.
Upgrade your hauling game with the Bumper pull deckover trailer from Hillcrest Trailers today!
| MODEL | TAIL | LENGTH | WIDTH |
|---|---|---|---|
| 15416SDST | STRAIGHT | 16' | 102" |
| 15420SDST | STRAIGHT | 20' | 102" |
| 15424SDST | STRAIGHT | 24' | 102" |
| 15428SDST | STRAIGHT | 28' | 102" |
| 154165SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 16'+5' | 102" |
| 154205SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 20'+5' | 102" |
| 154245SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 24'+5' | 102" |
| MODEL | TAIL | LENGTH | WIDTH |
|---|---|---|---|
| 17616SDST | STRAIGHT | 16' | 102" |
| 17620SDST | STRAIGHT | 20' | 102" |
| 17624SDST | STRAIGHT | 24' | 102" |
| 17628SDST | STRAIGHT | 28' | 102" |
| 176165SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 16'+5' | 102" |
| 176205SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 20'+5' | 102" |
| 176245SDMR | 5' SELF CLEANING DOVE w/ MAX RAMPS | 24'+5' | 102" |
Optional Equipment
- Spare Tire & Mount
- Underslung Toolbox
- Hydraulic Jacks
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles (15.4K) | 2 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Axles (17.6K) | 2 - 8000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axle |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | Engineered Beam |
| Coupler | 21K Adjustable Demco Coupler, 2 5/16" Ball |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook |
| Jack | Single 12,000# Drop Leg Jack (Bolted on) w/Greasable Handle |
| Frame | 10" I-Beam, 12# |
| Cross-Members | 3" Channel |
| Floor | Treated Pine |
| Ramps | 5' Full Width Mega Ramps or 8' HD Slide In Ramps (Straight Deck) |
| Dovetail | Straight Deck (No Dovetail) or 5' Self Cleaning Dovetail |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. |
| Rub Rail | 3/8" x 2" Down Both Sides w/ 1.5" Pipe Spools 24" O.C. |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet Mounted L.E.D Lighting |
| Wiring | Sealed Modular Wiring Harness |
| Tires (17.6K) | ST235/80R16 Load Range E Duals |
| Tires (15.4K) | ST215/75R17.5 Load Range H Duals |
| Spare Mount | Mounted Behind Intergrated Toolbox |
| Spare Tire | Standard |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Storage | Integrated Tongue Toolbox |
| Steps & Handles | (2) Retractable Steps |
