Introducing the Hillcrest Trailers

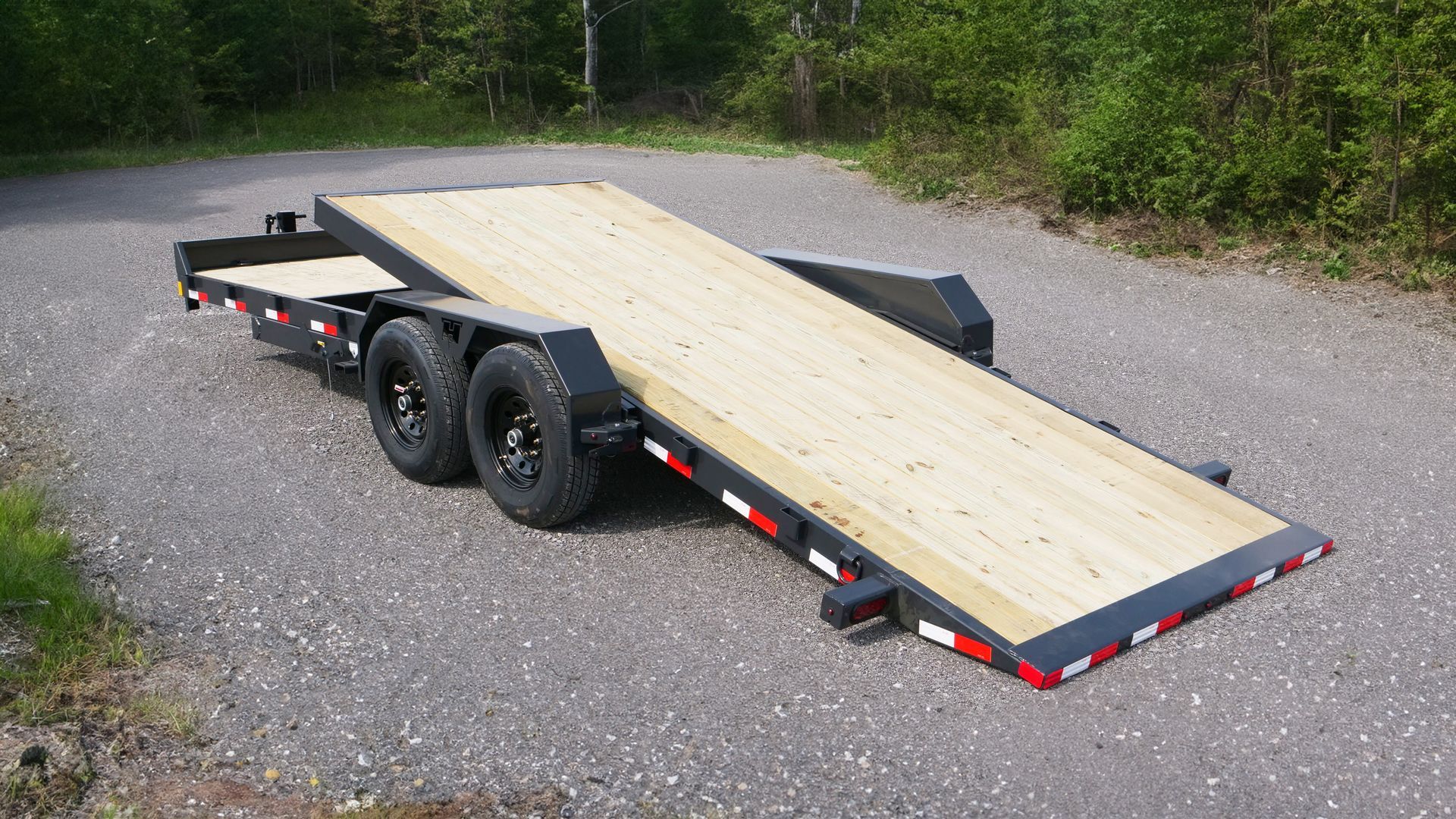

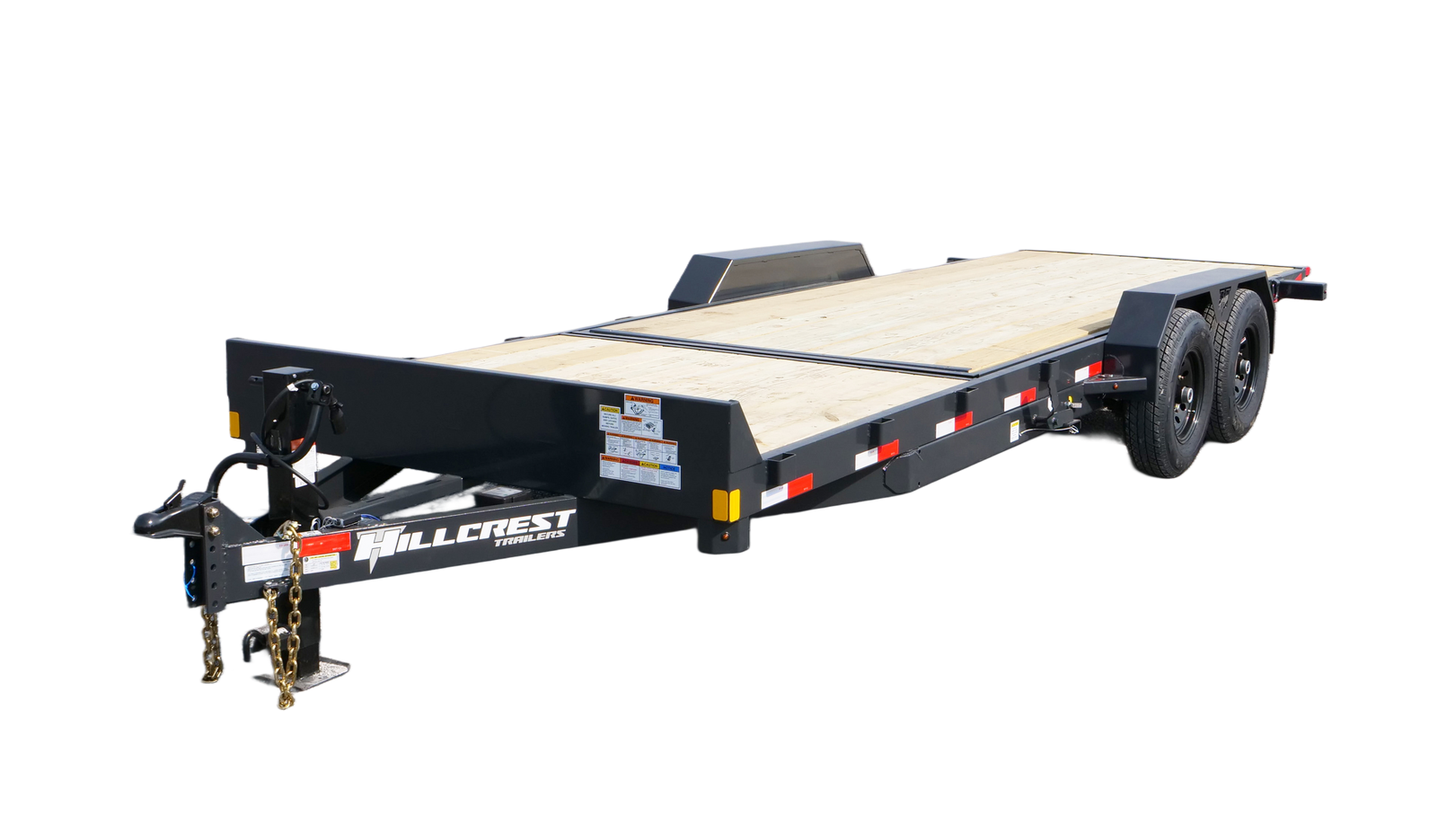

PARTIAL TILT TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
INTRODUCING THE HILLCREST TRAILERS
Partial Tilt TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
3 Year Limited
WARRANTY
16+4' or 16+6'
LENGTH
82"
WIDTH
14K or 16K
GVWR
3 Year Limited
WARRANTY
19+3' or 21+3'
LENGTH
83"
WIDTH
17.6K or 21K
GVWR
This heavy-duty trailer features a 3/16” fabricated front stop rail and stake pockets along both sides for secure loading and transport.
The sealed modular wiring harness and 7-way RV trailer plug ensure reliable lighting and electrical connections. Equipped with premium axles, electric brakes, and multi-leaf slipper spring suspension, this trailer offers a smooth and safe ride every time.

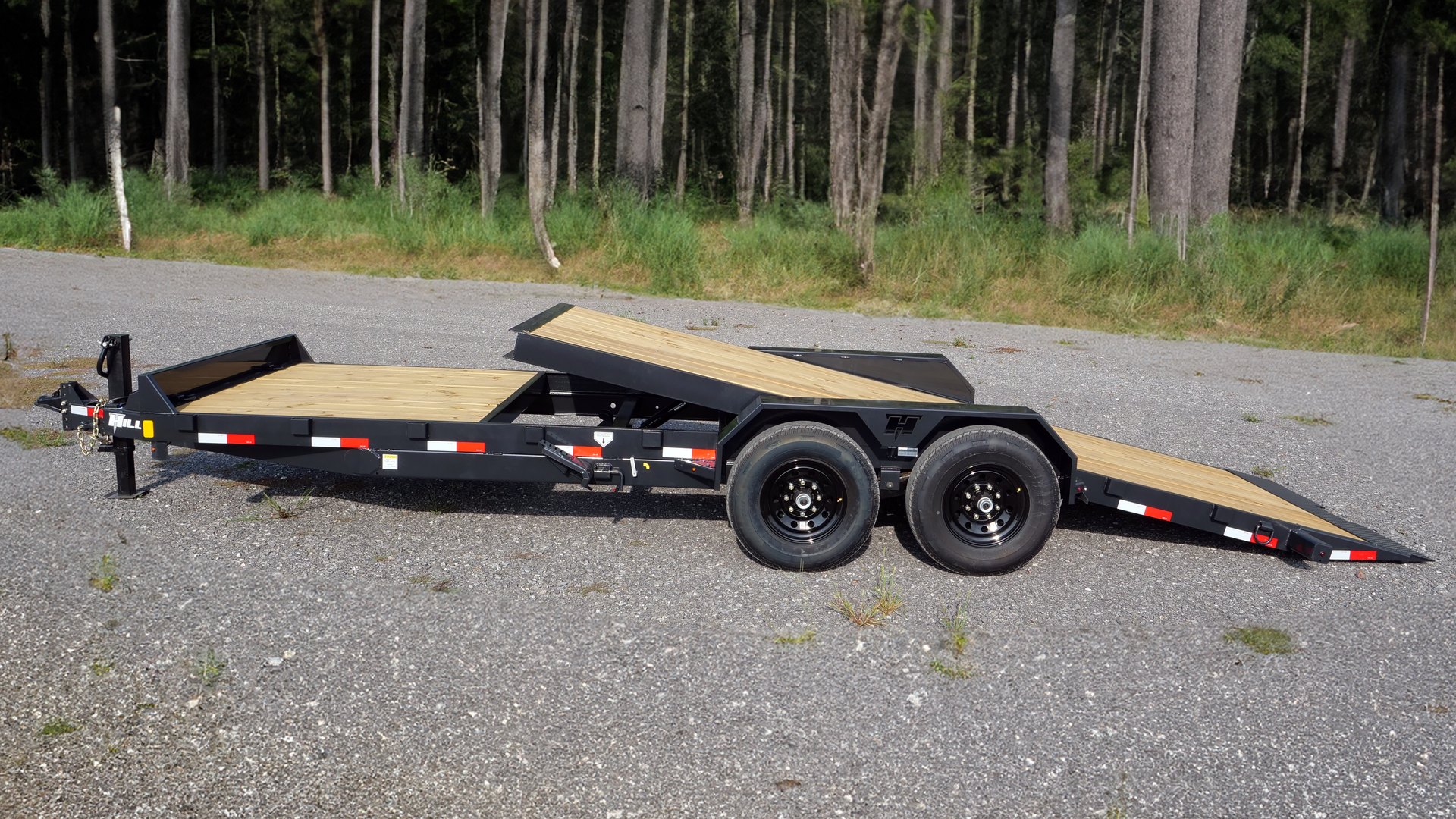

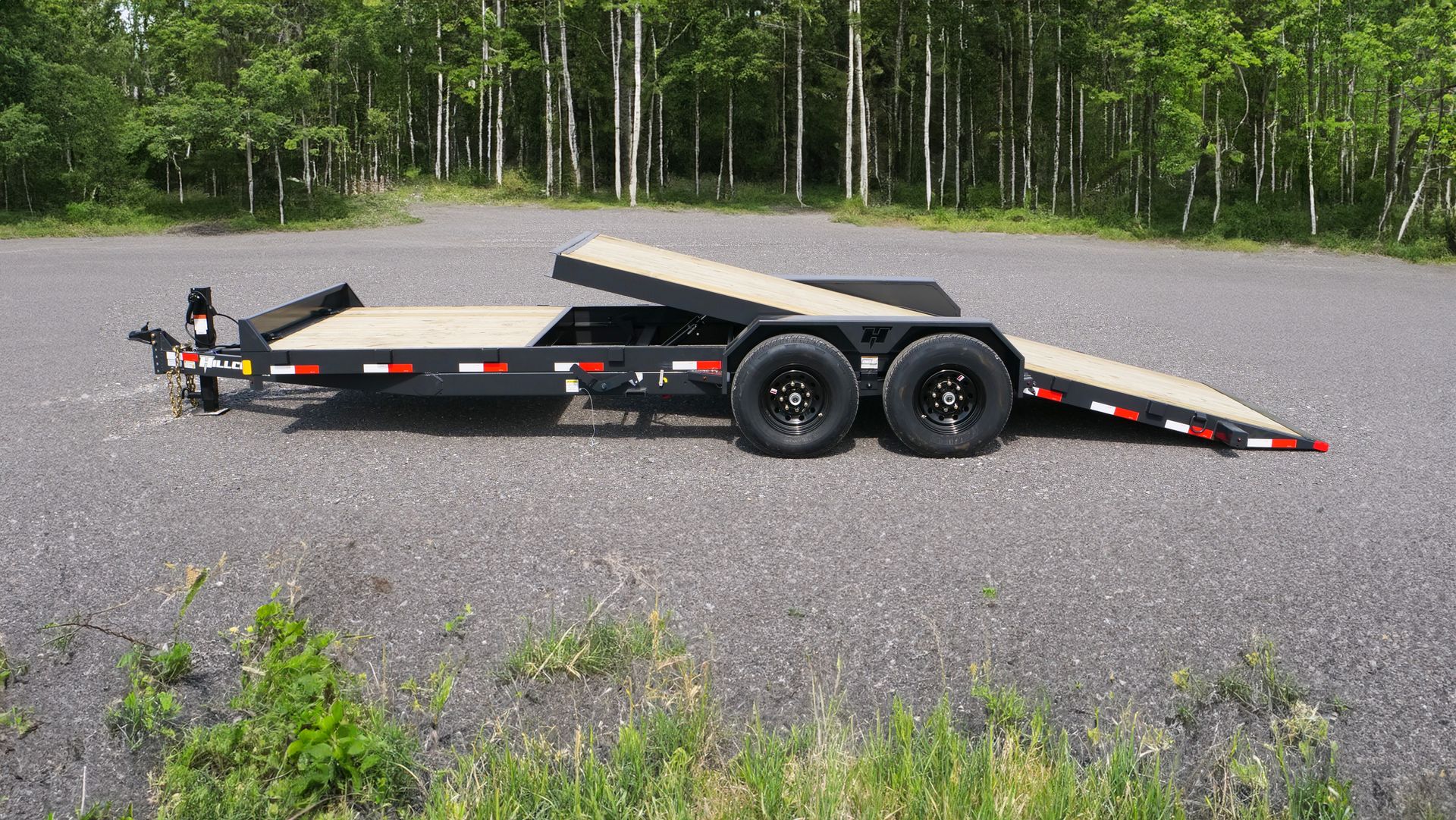

The 16+4 or 16+6 size options provide ample space for your cargo, while the hydraulic dampening tilt deck operation makes loading and unloading a breeze.
Don’t miss out on this top-of-the-line trailer in black gray color with Sherwin Williams super durable powder paint — the perfect choice for all your hauling needs.
14k Trailer Specs
| MODEL | AXLES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|
| 14164SPT | 2 - 7000# | 16' + 4' | 82" | 3,680lbs. | 10,320lbs. |
| 14166SPT | 2 - 7000# | 16' + 6' | 82" | 3,790lbs. | 10,210lbs. |
16k Trailer Specs
| MODEL | AXLES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|
| 16164SPT | 2 - 8000# | 16' + 4' | 82" | 4,030lbs. | 11,970lbs. |
| 16166SPT | 2 - 8000# | 16' + 6' | 82" | 4,140lbs. | 11,860lbs. |
Optional Equipment
- Tool Box
- Spare Tire Mount
- Spare Tire
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles (14K) | 2 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Axles (16K) | 2 - 8000# Premium Hybrid, Cambered Axles |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 6" Channel Wrap Tongue |
| Coupler (14K) | 2-5/16" Adjustable Coupler |
| Coupler (16K) | 2-5/16" Adjustable Demco Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Frame | 6" Factory Channel |
| Cross-Members | 3" Factory Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor | 2" Treated Pine |
| Fenders | Removable Double Broke Fenders |
| Stake Pockets | Stake Pockets Along Both Sides |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed Modular Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Bolt Pattern | 8-Bolt |
| Spare Tire | Optional |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Tilt Deck Length | 16' |

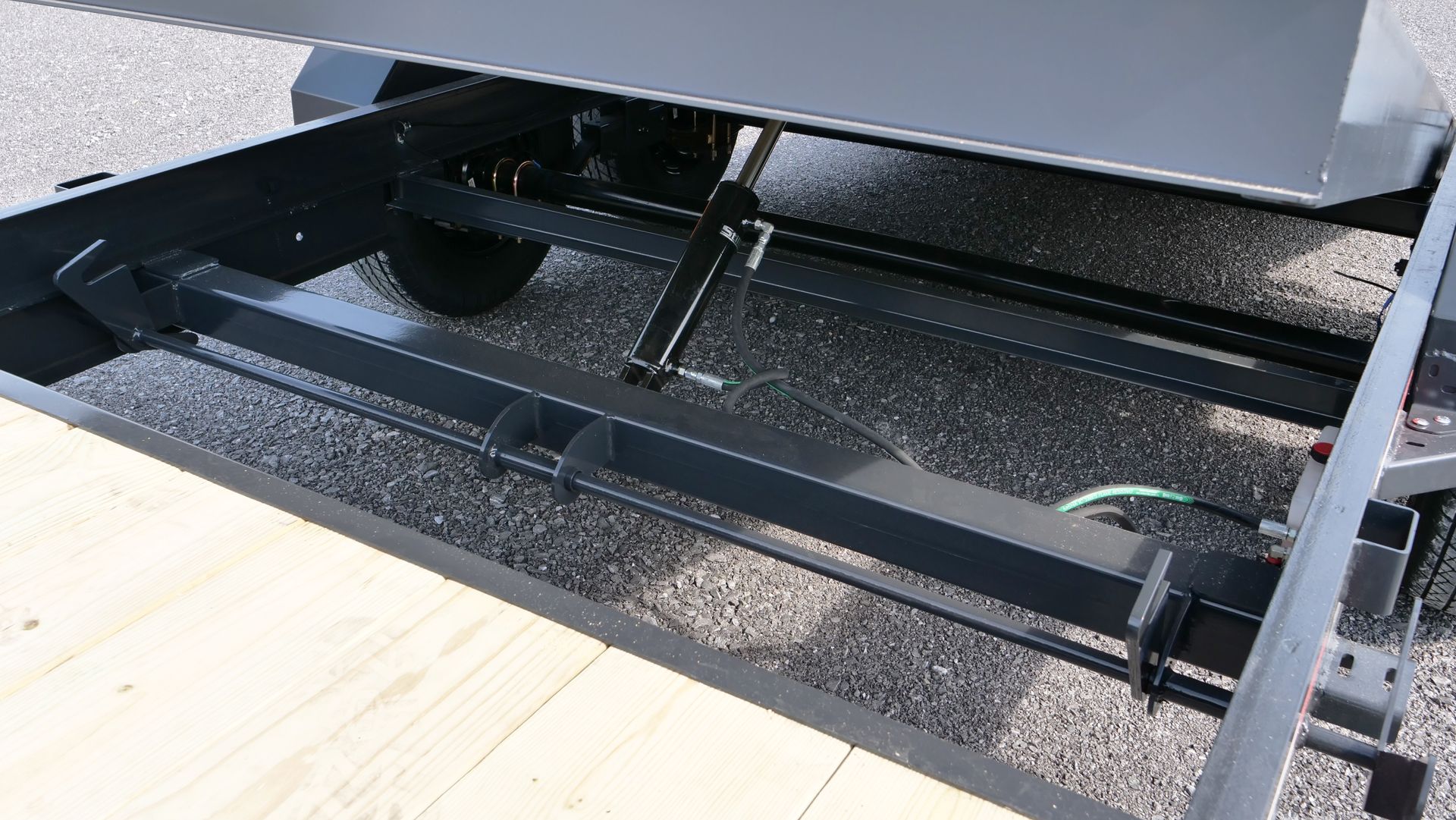

| Tilt Deck Operation | Hydraulic Dampening with Valve Control |
| Stationary Deck Area | 4' (20' Models)6' (22' Models) |
| Tie-Downs | (4) 5/8" D-Rings |
| Tilt Deck Angle | 12 degrees |
| Sizes (ft) | 16+4, 16+6 |
This heavy-duty trailer features a 3/16” fabricated front stop rail and stake pockets along both sides for secure loading and transport.
The sealed modular wiring harness and 7-way RV trailer plug ensure reliable lighting and electrical connections. Equipped with premium axles, electric brakes, and multi-leaf slipper spring suspension, this trailer offers a smooth and safe ride every time.
The 16+4 or 16+6 size options provide ample space for your cargo, while the hydraulic dampening tilt deck operation makes loading and unloading a breeze.
Don’t miss out on this top-of-the-line trailer in black gray color with Sherwin Williams super durable powder paint — the perfect choice for all your hauling needs.
14k Trailer Specs
| MODEL | AXLES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|
| 14164SPT | 2 - 7000# | 16' + 4' | 82" | 3,680lbs. | 10,320lbs. |
| 14166SPT | 2 - 7000# | 16' + 6' | 82" | 3,790lbs. | 10,210lbs. |
16k Trailer Specs
| MODEL | AXLES | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|---|
| 16164SPT | 2 - 8000# | 16' + 4' | 82" | 4,030lbs. | 11,970lbs. |
| 16166SPT | 2 - 8000# | 16' + 6' | 82" | 4,140lbs. | 11,860lbs. |
Optional Equipment
- Tool Box
- Spare Tire Mount
- Spare Tire
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles (14K) | 2 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Axles (16K) | 2 - 8000# Premium, Cambered Axles with Oil Bath Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer |
| Tongue | 6" Channel Wrap Tongue |
| Coupler (14K) | 2-5/16" Adjustable Coupler |
| Coupler (16K) | 2-5/16" Adjustable Demco Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Frame | 6" Factory Channel |
| Cross-Members | 3" Factory Channel |
| Front Stop Rail | 3/16" Fabricated Front Stop Rail |
| Floor | 2" Treated Pine |
| Fenders | Removable Double Broke Fenders |
| Stake Pockets | Stake Pockets Along Both Sides |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed Modular Wiring Harness |
| Tires | ST235/80 R-16 Load Range E Radial Tires |
| Bolt Pattern | 8-Bolt |
| Spare Tire | Optional |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Tilt Deck Length | 16' |
| Tilt Deck Operation | Hydraulic Dampening with Valve Control |
| Stationary Deck Area | 4' (20' Models)6' (22' Models) |
| Tie-Downs | (4) 5/8" D-Rings |
| Tilt Deck Angle | 12 degrees |
| Sizes (ft) | 16+4, 16+6 |
