MODEL CURRENTLY UNAVAILABLE
Introducing the Hillcrest Trailers

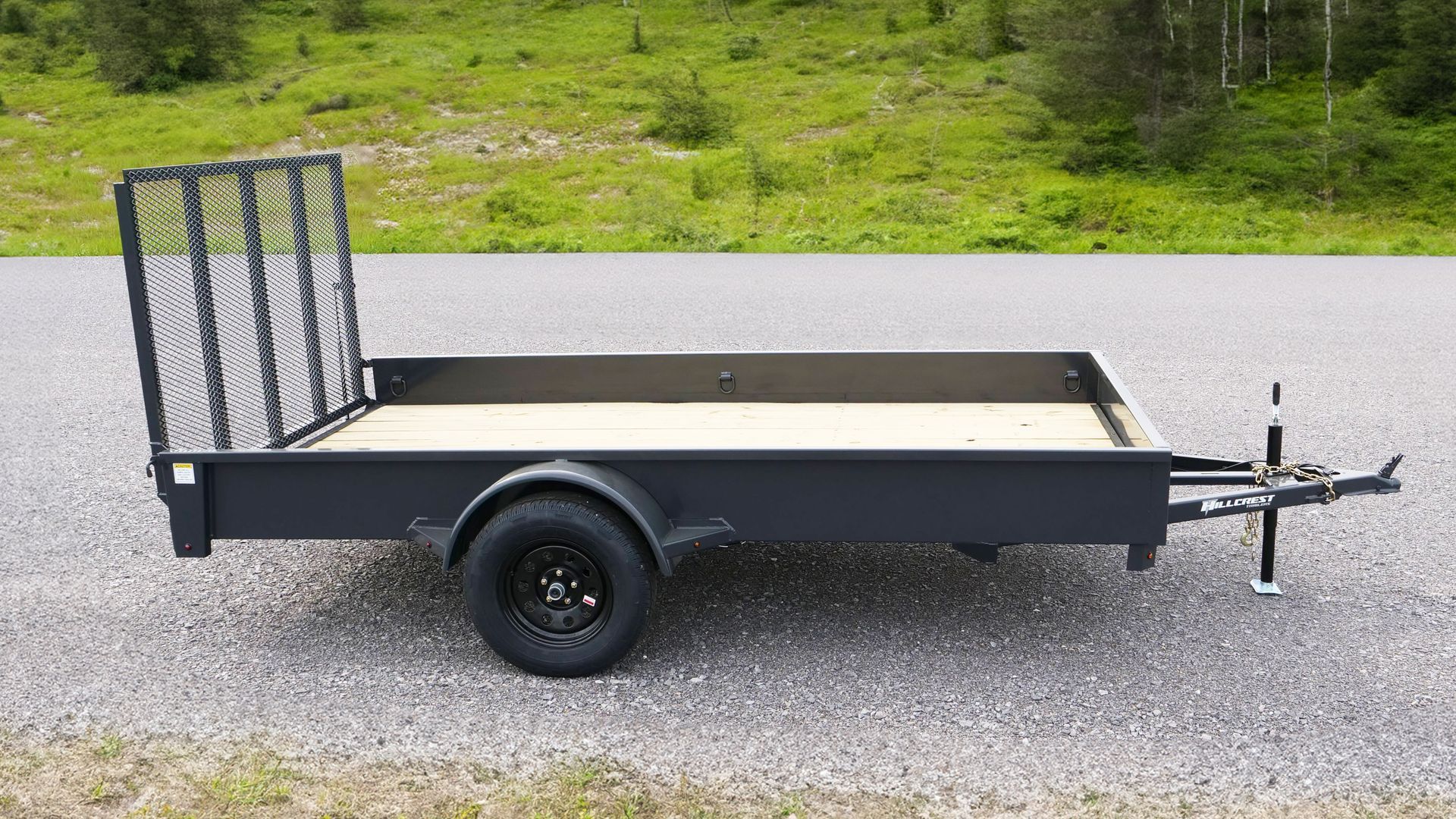

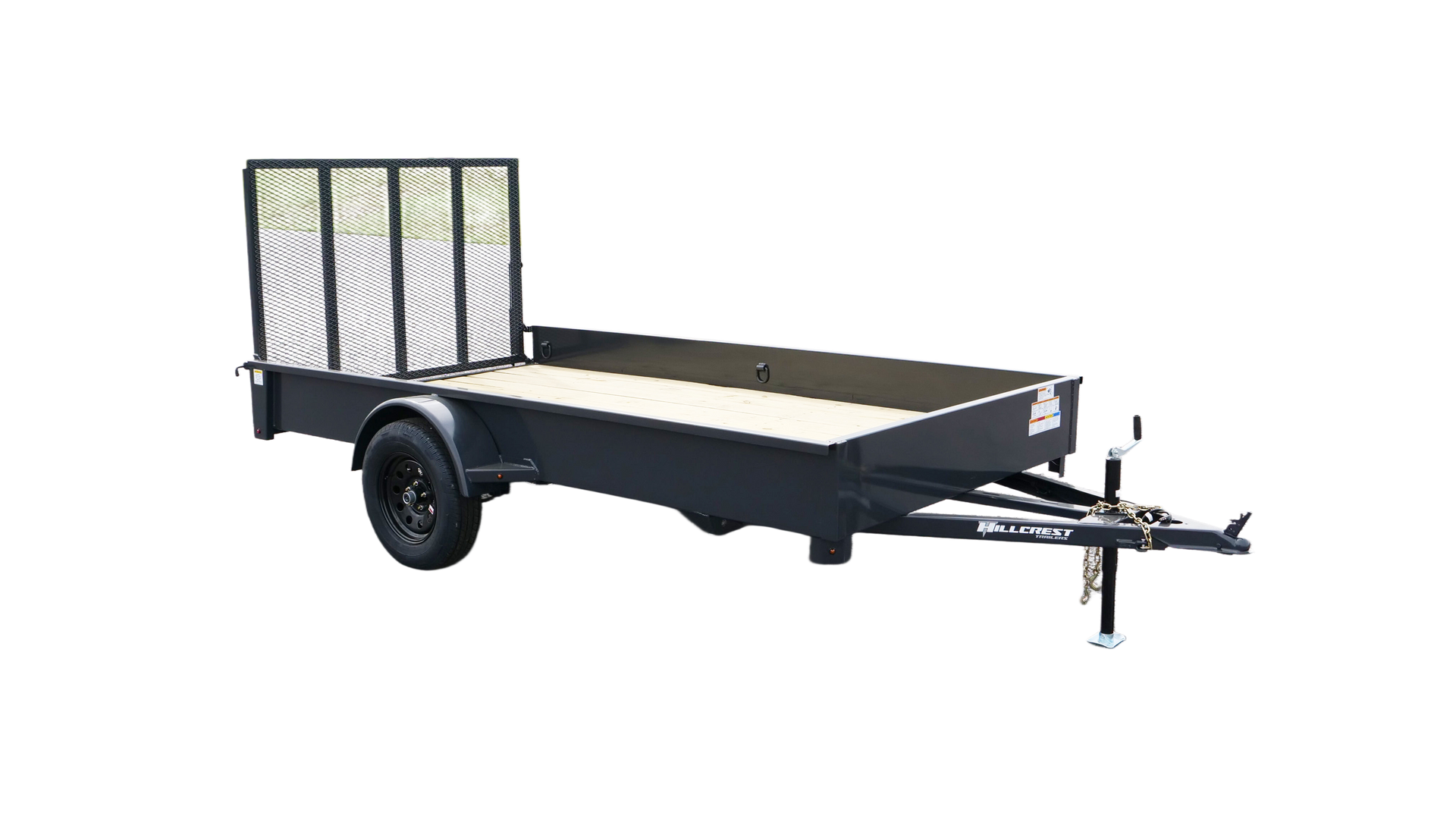

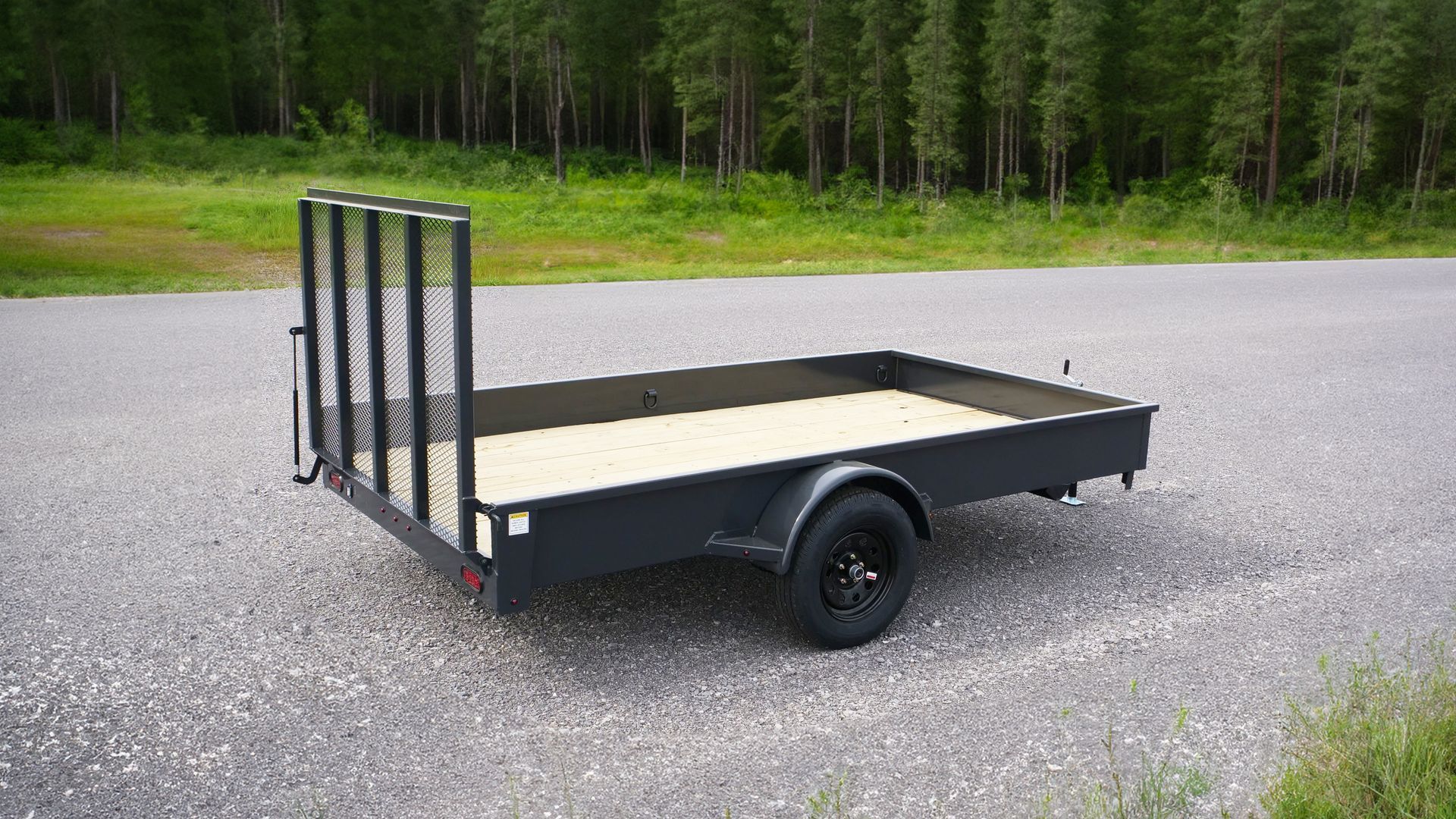

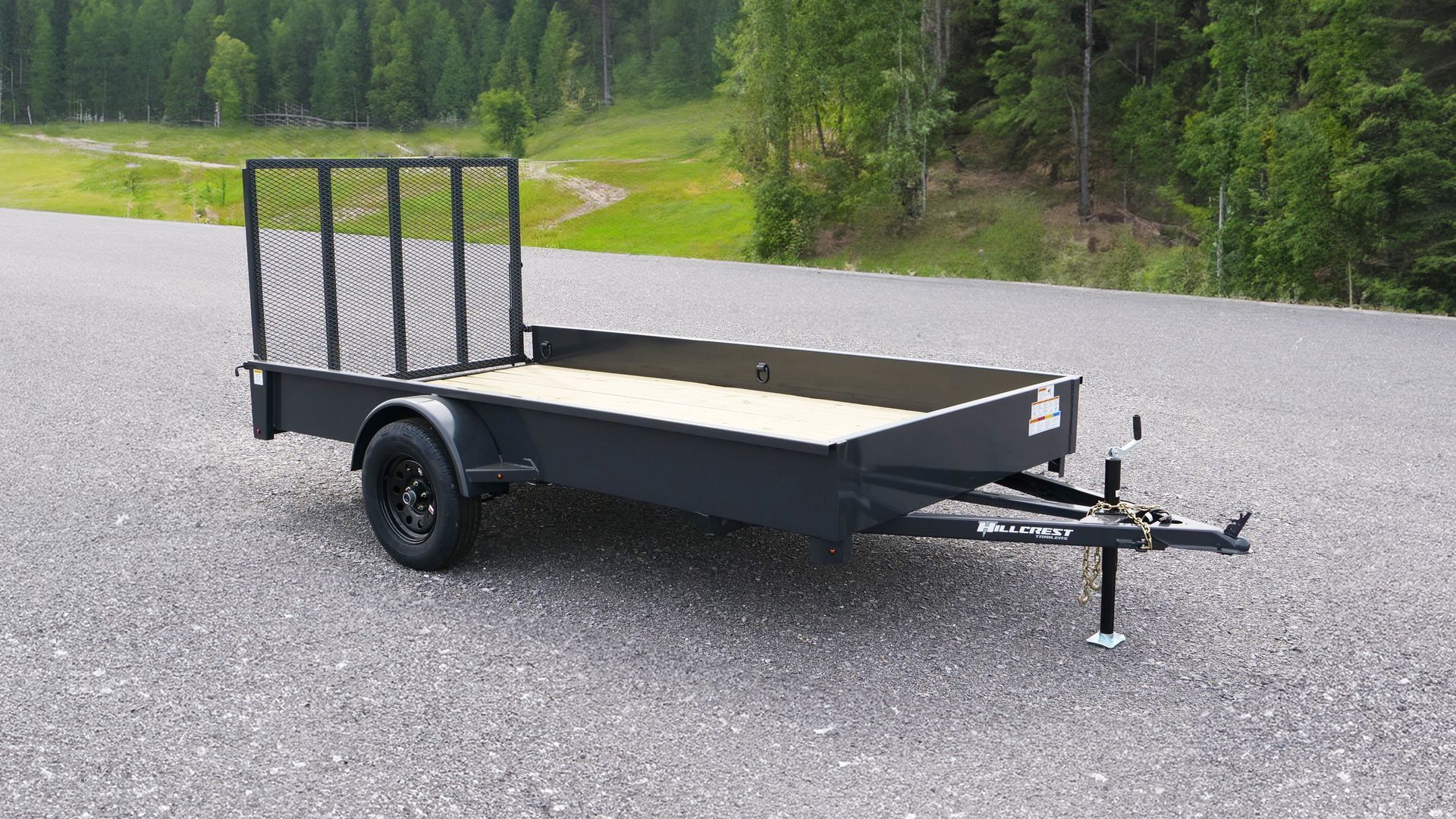

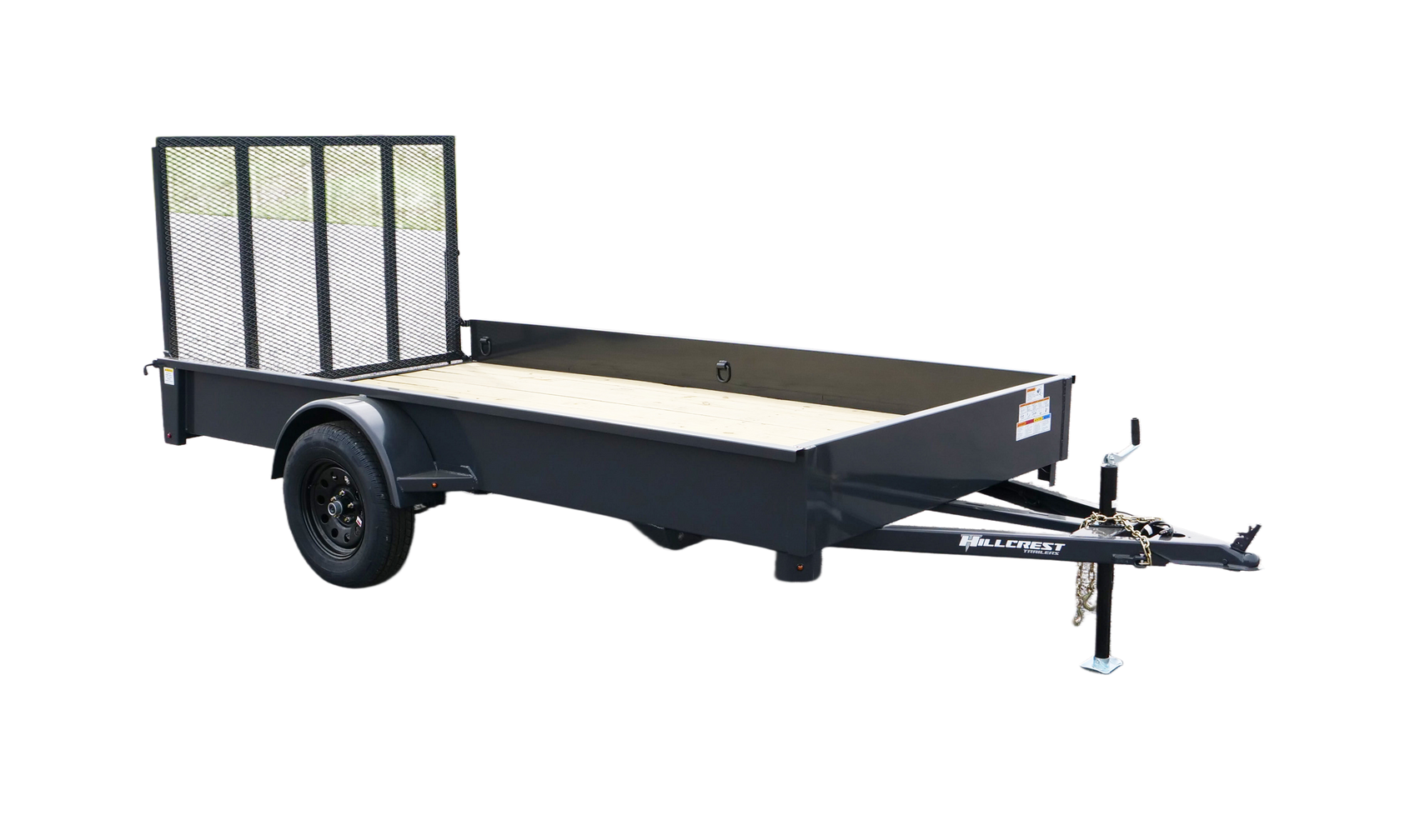

Single Axle Utility TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
INTRODUCING THE HILLCREST TRAILERS
SINGLE AXLE UTILITY TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
MODEL CURRENTLY UNAVAILABLE
3 Year Limited
WARRANTY
10'/12'/14'
LENGTH
76"
WIDTH
3K
GVWR
3 Year Limited
WARRANTY
10'/12'/14'
LENGTH
76"
WIDTH
3K
GVWR
With a 3,500# Premium Cambered Axle with Quick-Lubricating Hubs, this trailer is built for durability and ease of maintenance.
The Brake Flanges make it simple to add brakes, while the Multi-Leaf Slipper Spring Suspension ensures a smooth ride. The 2” A-frame Coupler and 1/4” Grade 70 Safety Chains provide added security, and the 5,000# Top Wind Jack makes it easy to hitch and unhitch.
The Formed Frame and Cross-members, along with the Treated Pine Floor, ensure strength and longevity. The 9” x 32” Rolled Formed Fenders and 4’ Tube Drop Gate add convenience, while the L.E.D. D.O.T. Lights and Sealed Modular Wiring Harness provide safety and reliability.
Available in sizes 10, 12, and 14 feet, the Single Axle Utility Trailer is perfect for all your hauling needs.
Choose Hillcrest Trailers for quality you can trust!
| MODEL | LENGTH | WIDTH | WEIGHT | PAYLOAD |
|---|---|---|---|---|
| 7610SU | 10' | 76" | 1,165lbs. | 1,825lbs |
| 7612SU | 12' | 76" | 1,275lbs. | 1,715lbs. |
| 7614SU | 14' | 76" | 1,350lbs. | 1,640lbs. |
Optional Equipment
- Hydraulic Gate Assist
(Pictures shown with Option Installed)
- Tool Box
- Spare Tire Mount
- Spare Tire
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles | 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs |
| Brakes | Brake Flanges for Easy Brake Addition |
| Suspension | Multi-Leaf Slipper Spring |
| Coupler | 2" A-frame Coupler |
| Safety Chains | 1/4" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack | 5,000# Top Wind, Set-Back Jack |
| Frame | Formed Frame |
| Cross-Members | Formed Cross-members 16" OC |
| Floor | Treated Pine |
| Fenders | 9" x 32" Rolled Formed |
| Ramps | 4' Tube Drop Gate |
| Trailer Plug | 4-Way Flat w/ Loom |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Wiring | Sealed Modular Wiring Harness |
| Tires | ST205/75 R-15 Load Range C |
| Bolt Pattern | 5 on 5 |
| Spare Mount | Optional |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Tie-Downs | (6) 1/2" welded D-rings Inside Bed |
| Sides | 14" Formed |
| GVWR | 2,995 |
| Sizes (ft) | 10, 12, 14 |
