Introducing the Hillcrest Trailers
I-BEAM EQUIPMENT TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
INTRODUCING THE HILLCREST TRAILERS
I-BEAM EQUIPMENT TRAILER
A HEAVY DUTY WORKHORSE DESIGNED FOR THE TOUGHEST JOBS
3 Year Limited
WARRANTY
19+3' or 21+3'
LENGTH
83"
WIDTH
17.6K or 21K
GVWR
3 Year Limited
WARRANTY
19+3' or 21+3'
LENGTH
83"
WIDTH
17.6K or 21K
GVWR

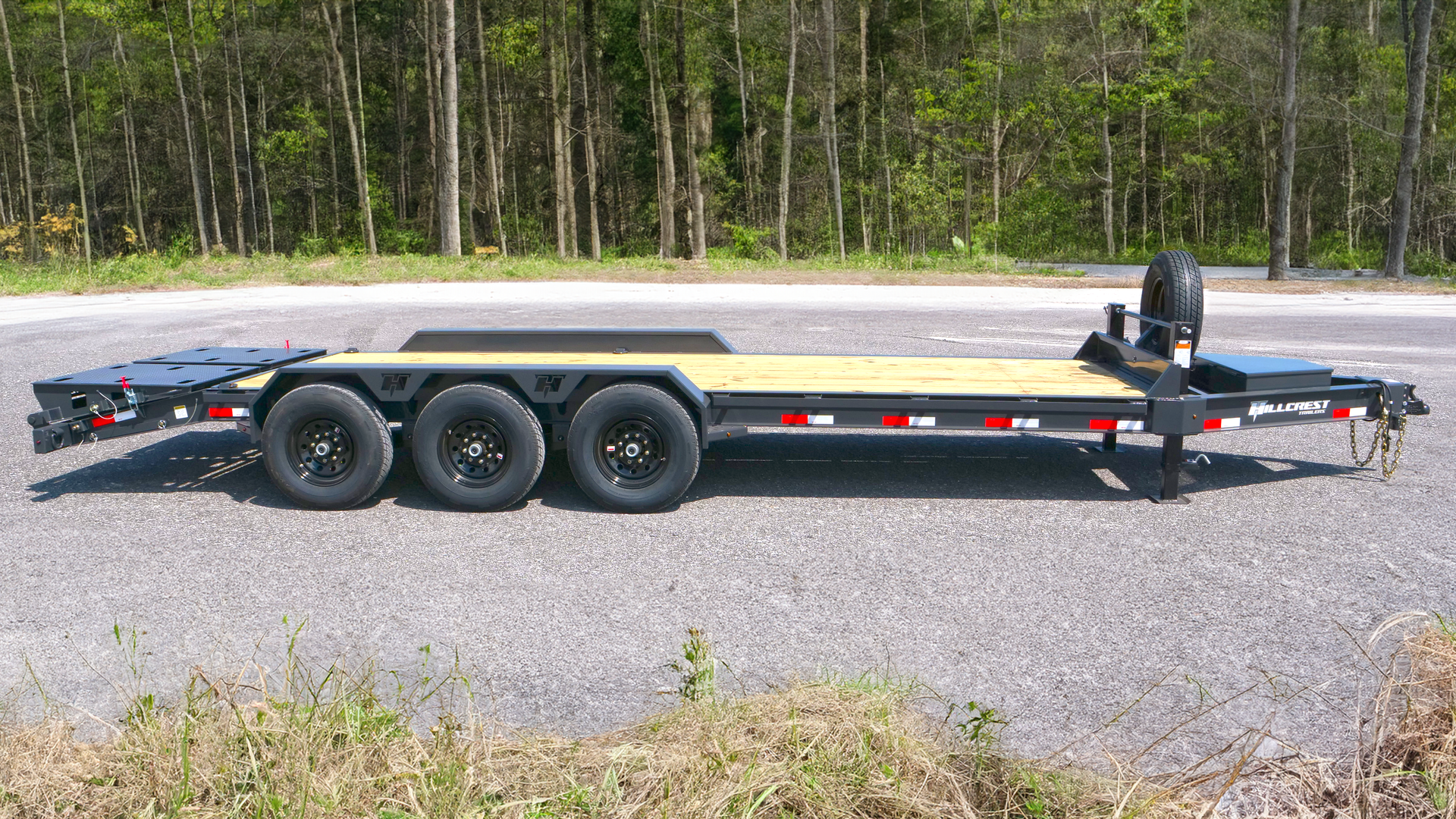

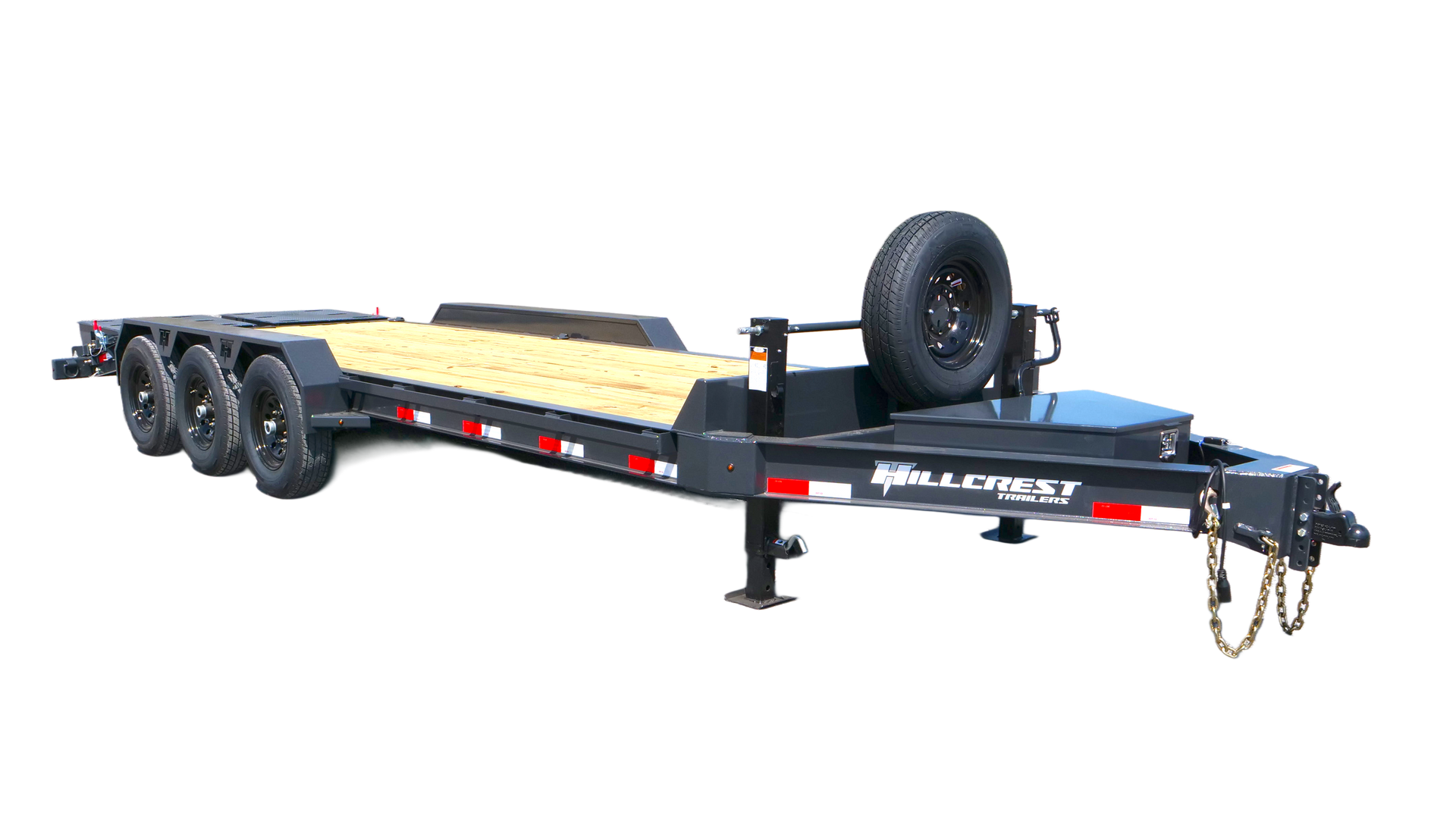

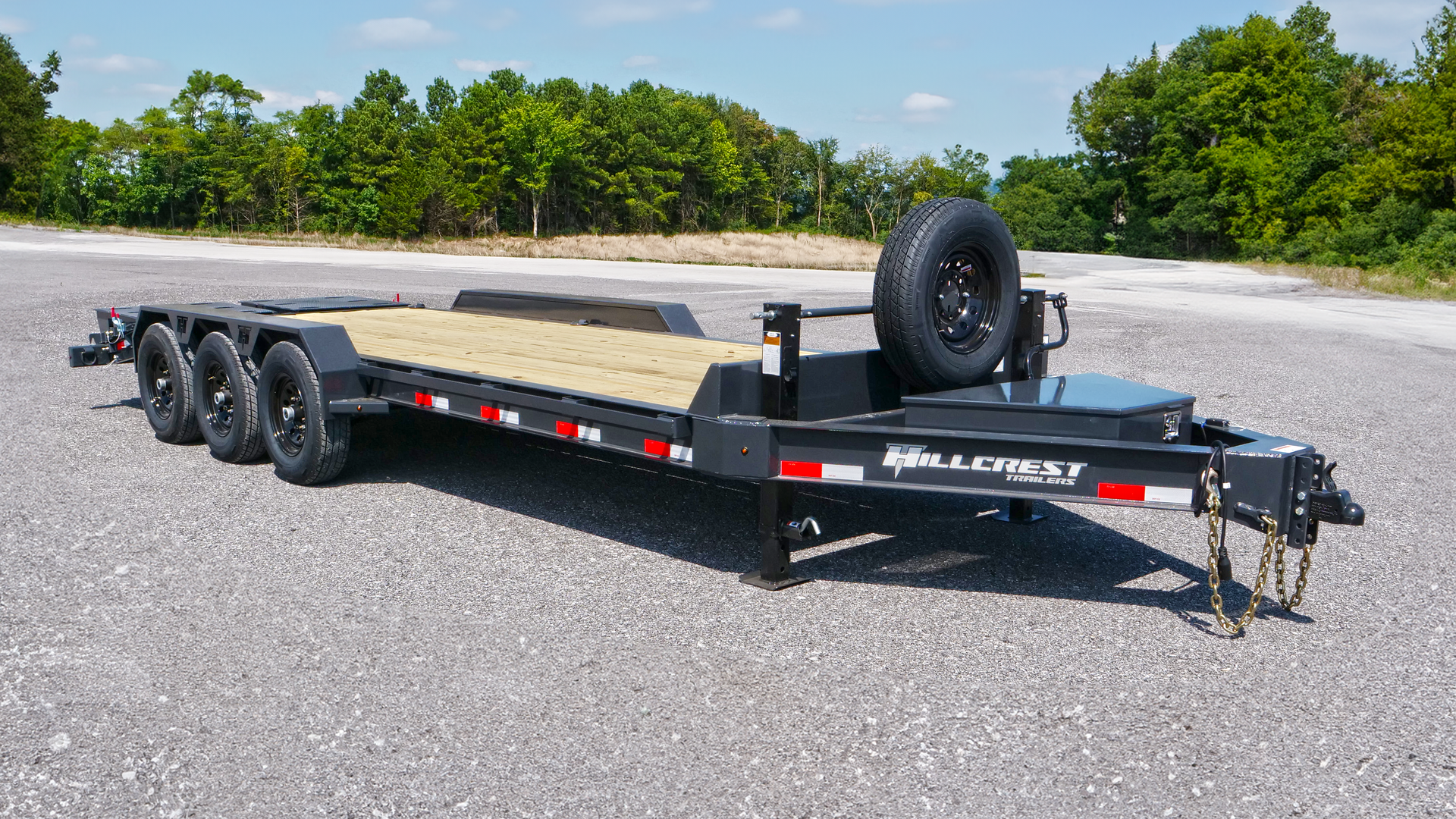

Introducing the I-Beam Equipment Trailer from Hillcrest Trailers, the perfect solution for transporting heavy equipment with ease. Available in dual and tripple axle configurations, this trailer is built to handle your toughest jobs. The premium cambered axles with quick-lubricating hubs ensure smooth and reliable performance, while the forward self-adjusting electric brakes on all axles provide added safety on the road.

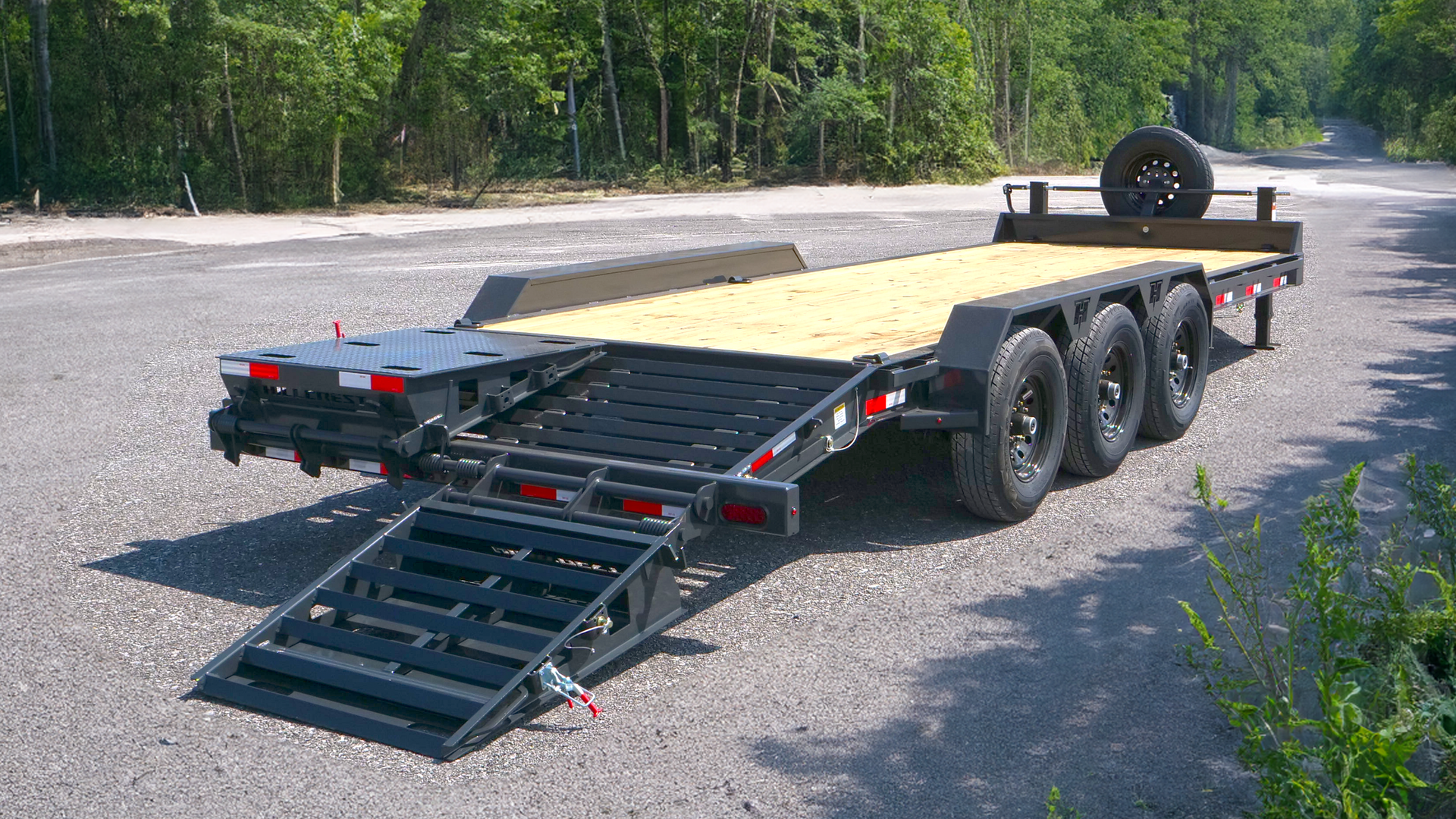

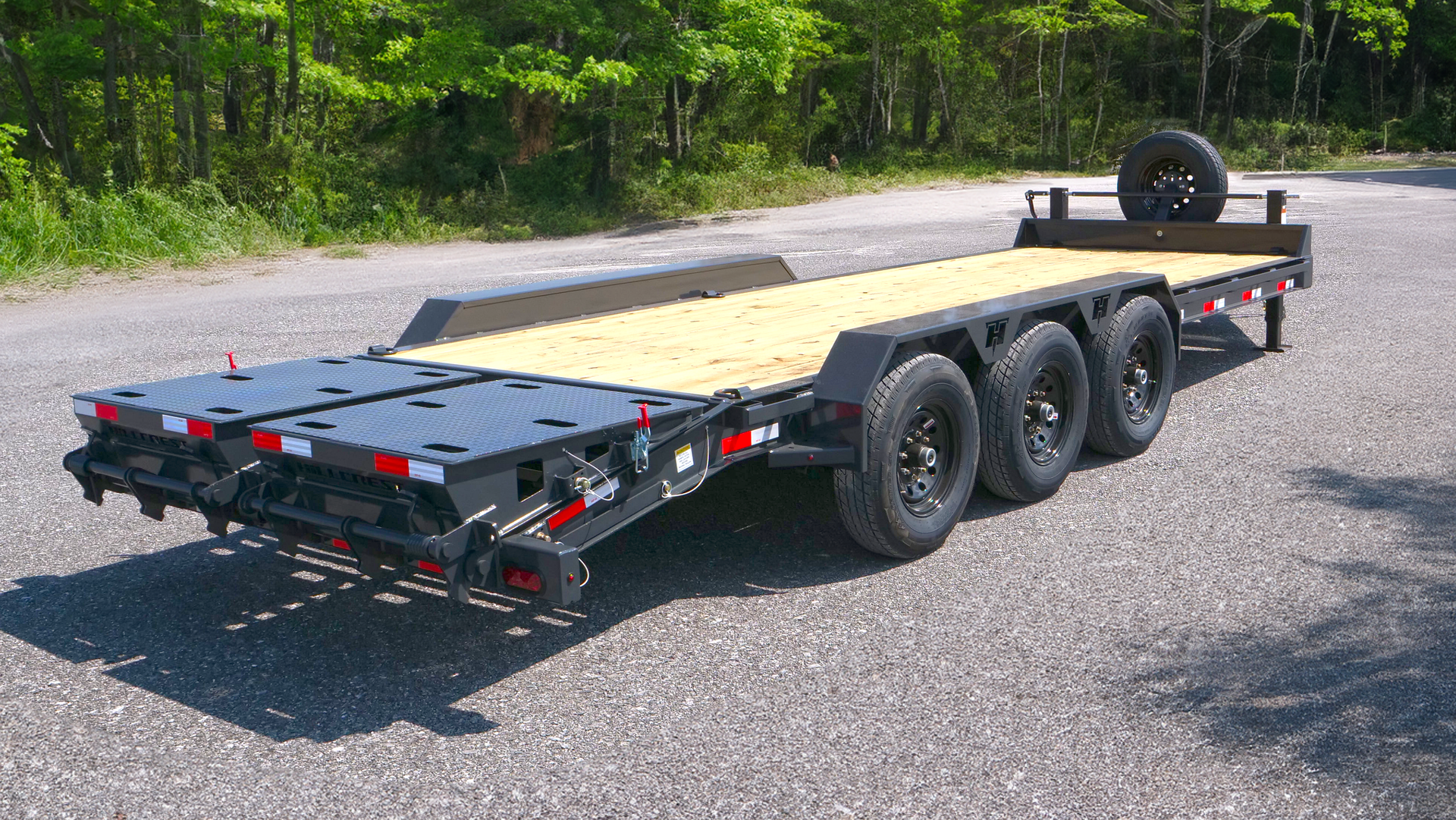

Constructed with a sturdy 8” I-Beam frame and 13LB tongue, this trailer is designed to last. The multi-leaf spring suspension with equalizer, along with the 3” factory channel cross-members, provide a stable and smooth ride. The 3’ cleated dovetail and double hinged 3’ mega ramps make loading and unloading equipment a breeze.
With features like 12 ga welded double broke fenders, recessed LED lighting, and 3/8” heavy duty rub rail on both sides, this trailer is as stylish as it is functional.
| MODEL | AXLES | LENGTH | WIDTH | GVWR |
|---|---|---|---|---|
| 176193SE | 2 | 19'+3' | 83" | 17.6K |
| 176213SE | 2 | 21'+3' | 83" | 17.6K |
| 21193SE | 3 | 19'+3' | 83" | 21K |
| 21213SE | 3 | 21'+3' | 83" | 21K |
Optional Equipment
- Tool Box
- Spare Tire Mount
- Spare Tire
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles (16K) | (16K) 2 - 8000# Premium, Cambered Axles with Quick-Lubricating Hubs- (21K) 3 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on All Axles |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tongue | 8" I-Beam, 13lbs. per foot |
| Coupler | 21,000 2 5/16" Adjustale Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack (16K) | Single 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Jack (21K) | Dual 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Frame | 8" I-Beam, 13lbs. per foot |
| Cross-Members | 3" Factory Channel |
| Front Stop Rail | 12 ga Fabricated Front Stop Rail |
| Floor | 2" Treated Pine |
| Fenders | Welded 12 ga Double Broke Fenders |
| Ramps | Double Hinged 3' Mega Ramps |
| Dovetail | 3' Cleated Dovetail |
| Stake Pockets | Along Both Sides 24" O.C. |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed Modular Wiring Harness |
| Tires | (17.6K) ST215/75 R-17.5 Load Range J - (21K) ST235/80 R-16 Load Range E |
| Bolt Pattern | 8-Bolt |
| Spare Mount | Optional Front Mounted |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Rubrail | 3/8" Heavy Duty Rub Rail on Both Sides |
| Tie-Downs | (8) 5/8" D-Rings |
| Storage | Standard Tongue Mounted Chain Tray, Optional Front Mounted Locking Toolbox |
With 2 premium 7000# axles, forward self-adjusting electric brakes on both axles, and a multi-leaf slipper spring suspension, this trailer is built to handle tough loads with ease.
The 8” I-beam tongue, adjustable coupler, and 3/8” grade 70 safety chains ensure that your cargo stays secure during transport.
The 12,000# top wind jack and 12-ton 3-stage telescopic cylinder ram make operation a breeze. With features like 24” tall sides, convenient side-steps, and rear stabilizer stands, this trailer offers both functionality and convenience. And with Sherwin Williams Super Durable Powder Paint for a long-lasting finish, you can trust that this trailer will look good for years to come.
Whether you choose the 14 or 16-foot size, the 14K Dump Trailer is ready to tackle any job you throw its way. Upgrade your hauling game today with the dependable and durable 14K Dump Trailer from Hillcrest Trailers.
| MODEL | AXLES | LENGTH | WIDTH | GVWR |
|---|---|---|---|---|
| 176193SE | 2 | 19'+3' | 83" | 17.6K |
| 176213SE | 2 | 21'+3' | 83" | 17.6K |
| 21193SE | 3 | 19'+3' | 83" | 21K |
| 21213SE | 3 | 21'+3' | 83" | 21K |
Optional Equipment
- Spare Tire to Fit Included Tire Mount
| CATEGORY | SPECIFICATIONS |
|---|---|
| Axles | (16K) 2 - 8000# Premium, Cambered Axles with Quick-Lubricating Hubs- (21K) 3 - 7000# Premium, Cambered Axles with Quick-Lubricating Hubs |
| Brakes | Forward Self-Adjusting Electric Brakes on All Axles |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tongue | 8" I-Beam, 13lbs. per foot |
| Coupler | 21,000 2 5/16" Adjustale Coupler |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) |
| Jack (16K) | Single 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Jack (21K) | Dual 12,000# Top Wind,Drop Leg, Set-Back Jack |
| Frame | 8" I-Beam, 13lbs. per foot |
| Cross-Members | 3" Factory Channel |
| Front Stop Rail | 12 ga Fabricated Front Stop Rail |
| Floor | 2" Treated Pine |
| Fenders | Welded 12 ga Double Broke Fenders |
| Ramps | Double Hinged 3' Mega Ramps |
| Dovetail | 3' Cleated Dovetail |
| Stake Pockets | Along Both Sides 24" O.C. |
| Trailer Plug | 7-Way RV |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting |
| Wiring | Sealed Modular Wiring Harness |
| Tires | (17.6K) ST215/75 R-17.5 Load Range J - (21K) ST235/80 R-16 Load Range E |
| Bolt Pattern | 8-Bolt |
| Spare Mount | Optional Front Mounted |
| Paint Type | Sherwin Williams Super Durable Powder |
| Paint Color | Black Gray |
| Rubrail | 3/8" Heavy Duty Rub Rail on Both Sides |
| Tie-Downs | (8) 5/8" D-Rings |
| Storage | Standard Tongue Mounted Chain Tray, Optional Front Mounted Locking Toolbox |
